O-RAN Fronthaul Delay Management Tool

What this tool does

The O-RAN Fronthaul Delay Management Tool helps engineers translate O-RU timing capabilities + transport delay budgets into valid O-DU configuration ranges—fully aligned with O-RAN WG4 CUS-plane (Open Fronthaul) timing relationships.

Instead of guessing delay values or manually working through inequalities, the tool:

• Applies WG4 constraint equations (DL/UL, U-plane & C-plane)

• Computes valid bounds (min/max) for O-DU parameters

• Flags invalid timing windows early

• Recommends safe DU configuration values ready for XML

In short: it converts spec constraints → deployable DU config

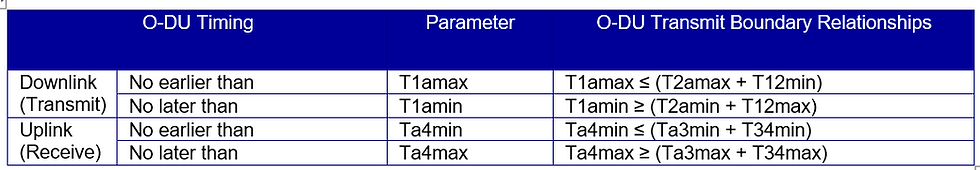

O-RAN WG4 CUS plane spec references:

Why it matters

In O-RAN deployments, many integration issues stem from:

• Misaligned t1a / ta4 windows

• Incorrect assumptions about transport latency (t12/t34)

• RU capability mismatches across vendors

This tool acts as a pre-integration validator, helping you:

• Avoid DL scheduling misses

• Prevent UL reception timing failures

• Ensure multi-vendor interoperability in fronthaul




Key Inputs

O-RU Delay Parameters

Provide RU-advertised capabilities:

• U-Plane

  • t2a_min_up, t2a_max_up

  • ta3_min_up, ta3_max_up

• C-Plane

  • t2a_min_cp_dl, t2a_max_cp_dl

  • t2a_min_cp_ul, t2a_max_cp_ul

• (Optional reference) tcp_adv_dl

Transport Delay Budget

Model your fronthaul network:

• t12_min, t12_max → DU → RU direction

• t34_min, t34_max → RU → DU direction




What the tool calculates

Downlink (O-DU transmission window)

• t1a_min (lower bound)

• t1a_max (upper bound)

For both:

• U-Plane

• C-Plane DL

Uplink (O-DU reception window)

• ta4_min, ta4_max

• C-Plane UL timing (t1a_min_cp_ul, t1a_max_cp_ul)




Validation Engine

The tool checks:

• Whether min ≤ max (valid window exists)

• Detects impossible timing configurations

• Highlights issues before deployment

Output

• Constraint ranges (as per WG4 inequalities)

• Recommended DU values (safe midpoint strategy)

• Ready-to-use XML snippet

How to use (Step-by-step)

1. Enter RU capabilities

Use vendor documentation or RU M-plane/YANG:

• Fill all t2a, ta3 values for U-plane and C-plane

2. Input transport delays

Based on your network:

• Fiber → low values (e.g., 10–50 µs)

• Ethernet → medium

• Microwave → higher + variation

3. Run calculation

Click “Calculate”

4. Interpret results

Valid window

You’ll see:

• Allowed min/max range

• Suggested DU configuration

Invalid window

Means:

• Transport latency too high OR

• RU constraints too tight

Action:

• Adjust transport budget

• Or reconfigure RU/DU timing

5.Apply DU configuration

Copy generated values into your DU config XML:

<DU_Delay_Config>    <t1a_min_up>...</t1a_min_up>    <t1a_max_up>...</t1a_max_up>    <ta4_min>...</ta4_min>    <ta4_max>...</ta4_max></DU_Delay_Config>

Practical Example

If:

• RU processing = 50–80 µs

• Transport (one-way) = 20–40 µs

Then:

• DU must schedule DL earlier:

  • t1a_min ≥ 50 + 40

  • t1a_max ≤ 80 + 20

The tool computes this instantly and ensures it’s valid.

Who should use this

• 5G RAN Test Engineers

• O-RAN Integration Teams

• System Validation Engineers

• Fronthaul Architects

• Vendors working on DU/RU interoperability

Key Benefits

• Saves hours of manual spec analysis

• Reduces integration failures

• Provides instant validation feedback

• Aligns with real WG4 deployment constraints

• Produces ready-to-use DU configs
